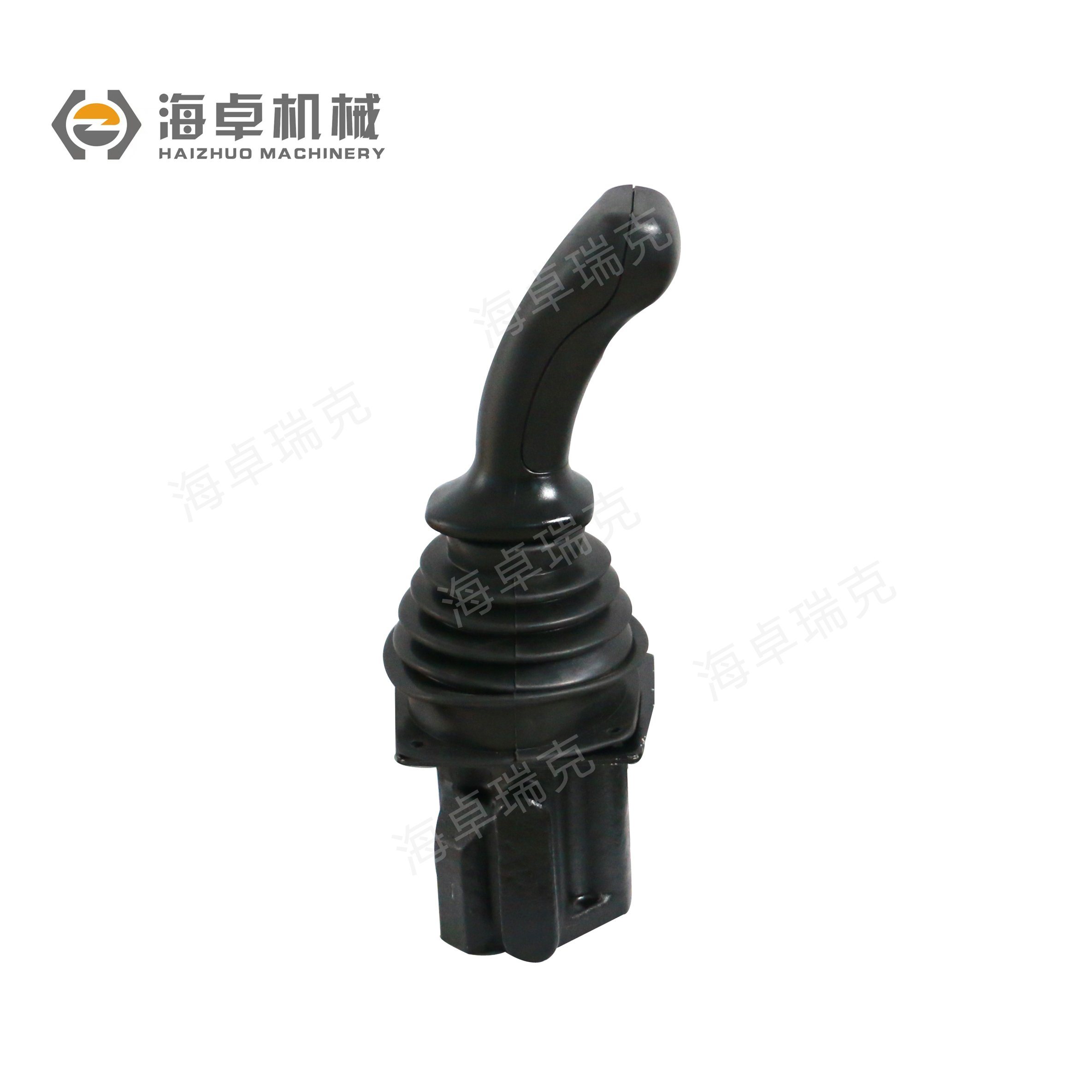

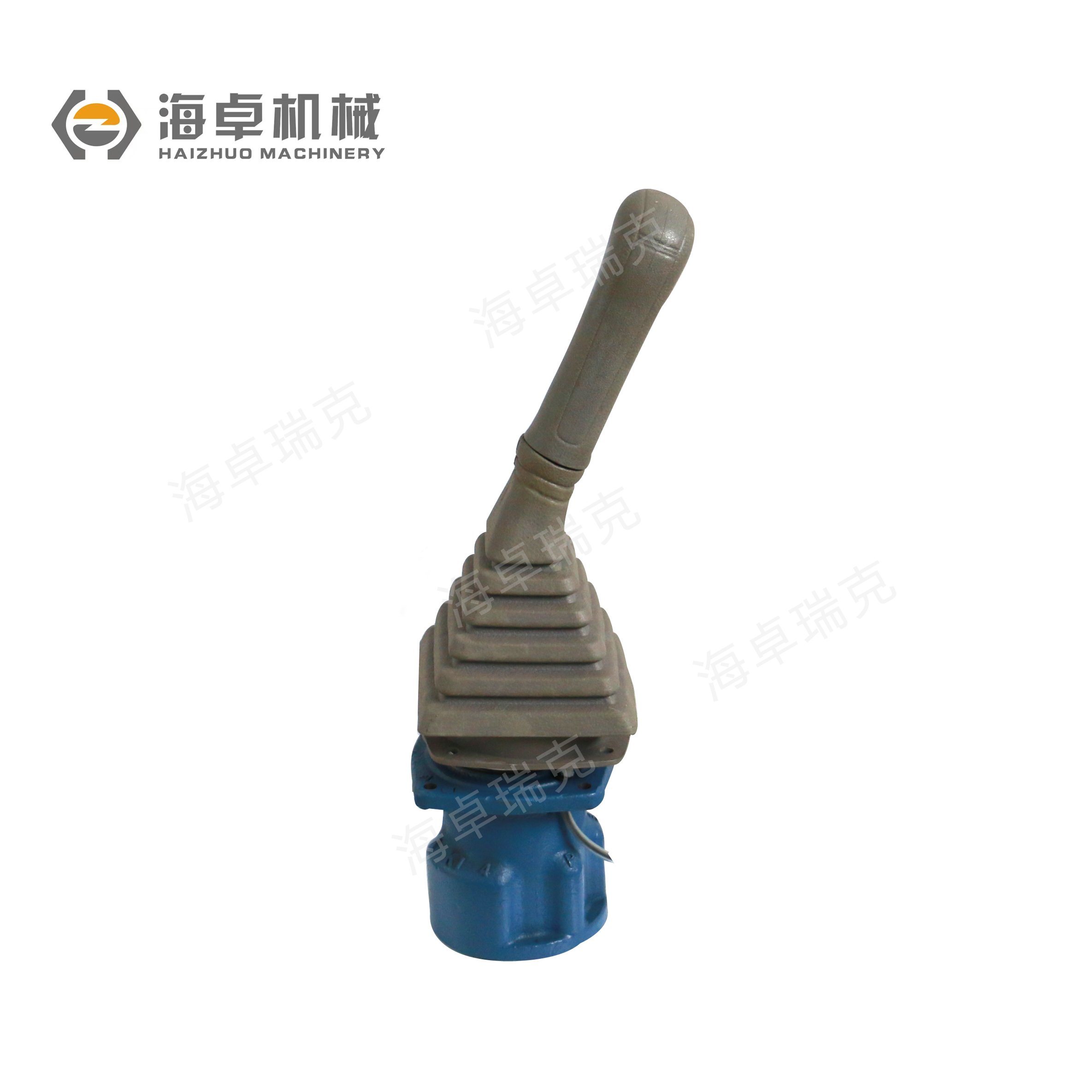

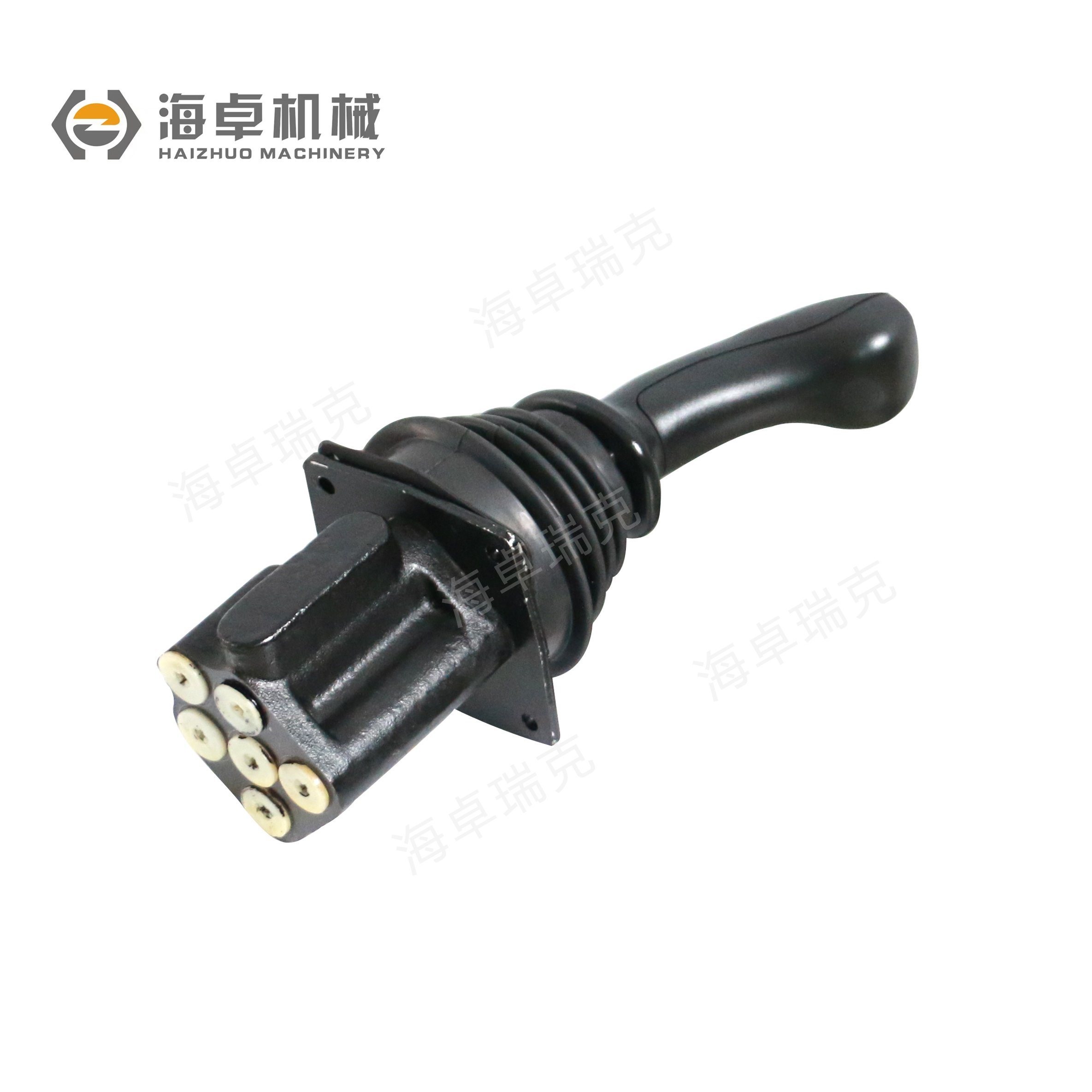

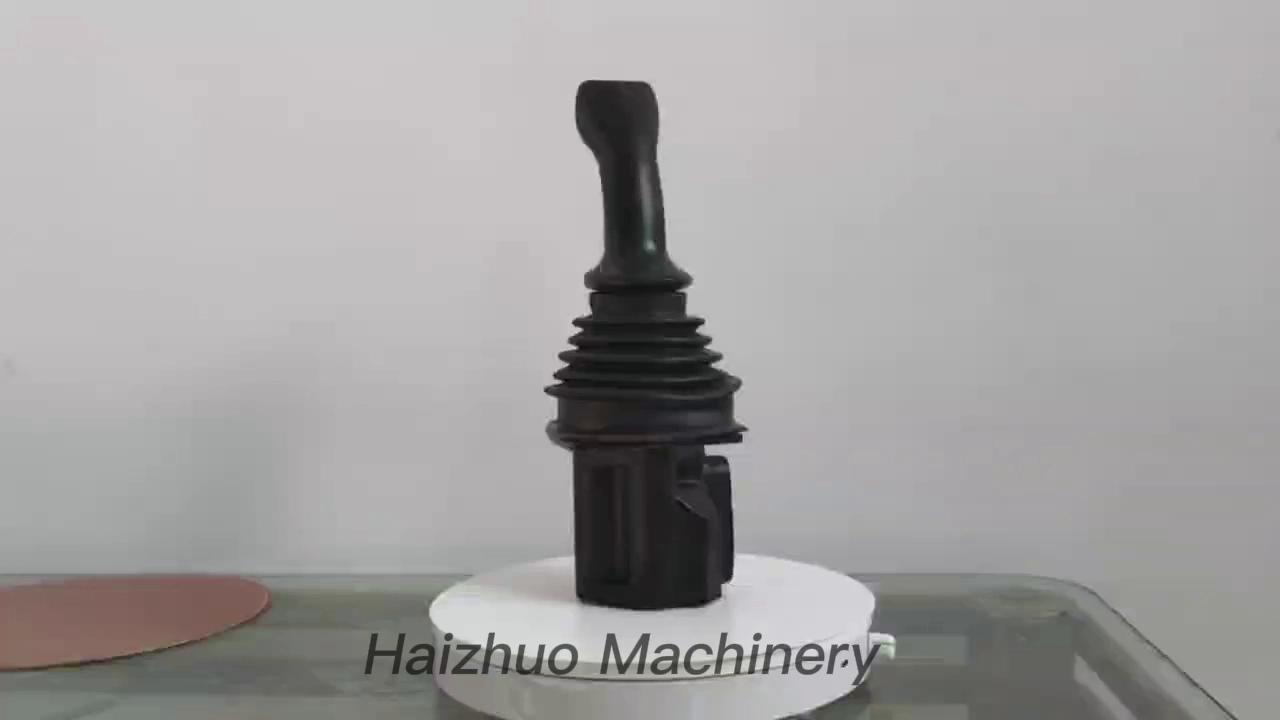

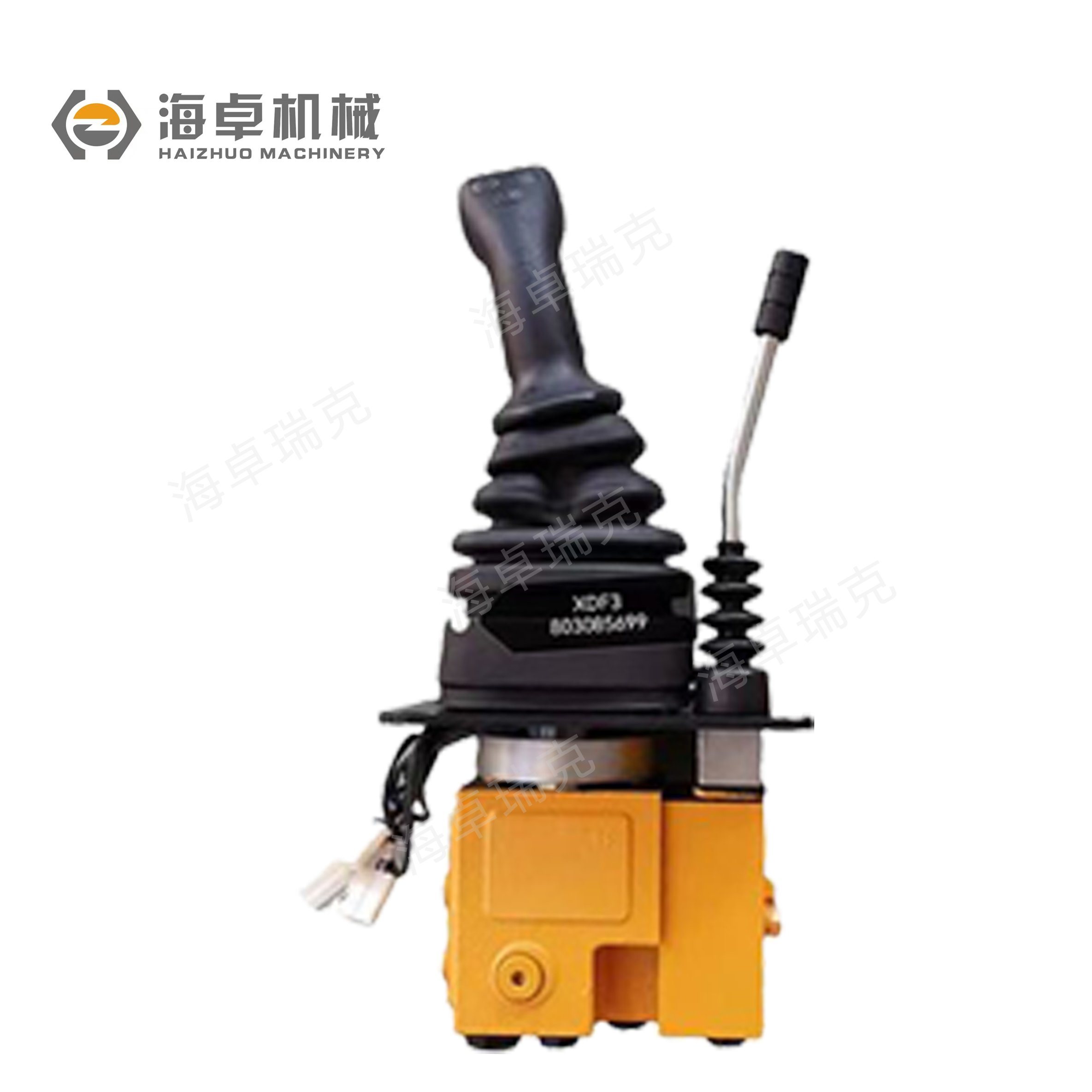

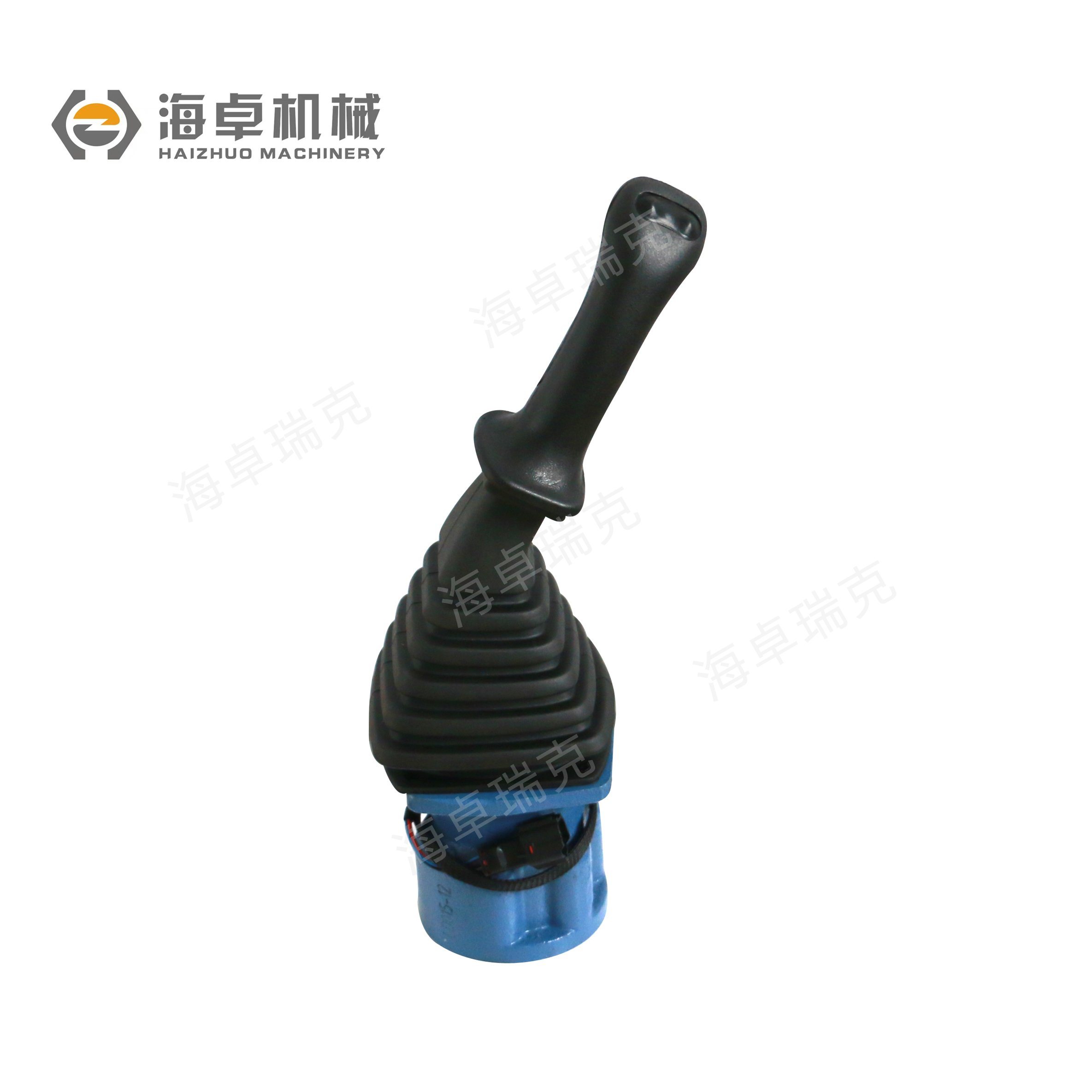

PVH-01D Solenoid Positioning Pilot Valve
| FOB Price:US $110-150/Piece (Min. Order 1 Piece ) Sample Price:US $180/Piece (Min. Order 1 Piece ) | |||
| Model No. | PVH-01D | Material | Cast Iron/Ductile Iron |
| After-sales Service | Yes | Warranty | 12 Months |
Temperature | -40~100 ºC | Power | Hydraulic |
| Media | Oil | Production Capacity | 18000 pieces/Year |
| Connection Mode | Flange | Standard | Standard |
| Type | Manual & Electromagnetic Positioning | Specification | 40cm*18cm*18cm |
| Control System | Pilot Control | Applicable Fields | Construction &Mining &Agriculture Machinery |
| Customization | Available | Trademark | haizhuo |
| Origin | Qingzhou Weifang China | Transport Package | Wooden Case & Carton & Foam Board |
| Port of shipment | QingDao | HS Code | 8481802990 |
This product is applicable to all kinds of low-speed
pilot controlled hydraulic systems,such as pilot remote control of auxiliary action oil circuit of small excavation series with tonnage of 8t and below, small installation series with tonnage of 2T and below, cranes, combine harvesters and various non-standard equipment.
It realizes the independent oil circuit action of low pressure and small flow control without increasing the power source.
It is characterized by simple and compact structure,light and comfortable operation,and good sensitivity.
Our product advantage 1:
The castings adopt standard ht250/rut340 or die cast aluminum, and the inner cavity adopts ultrasonic cleaning to remove burrs, effectively ensuring the cleanliness of the products;
Electromagnets are purchased from high- quality manufacturers and have been verified by millions of durability type tests to ensure high power on and off sensitivity and good reliability.
Our product advantage 2:

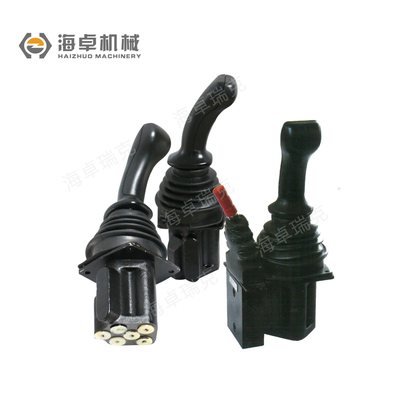

According to the needs of customers, the valve has different port connection types and different joystick configurations to meet the requirements of different OEM customers;
The valve has light weight, comfortable operation and reliable and accurate control. According to the matching main control valve, it is divided into two-way and three-way connections.

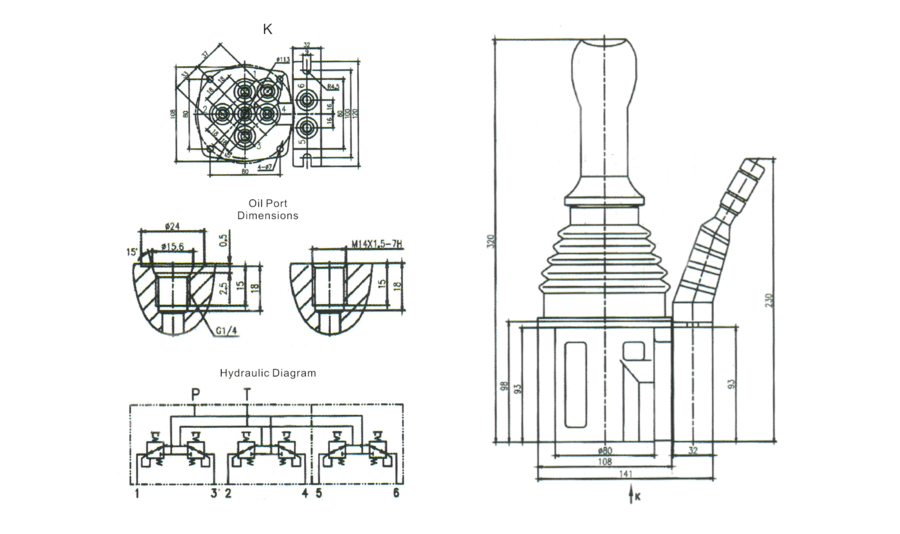

Parameters & Connection
| Technical Parameters of HZPVH-01D Solenoid Positioning Pilot Valve | |||||||||||||
| Model No. | Handle Type | Norminal flow (L/min) | Pressure (Kgf/cm) | Range of control (Kgf/cm) | Range of Torque (Kgf.cm) | Max Back Pressure (Kgf/cm) | Electromagnet | Joint no. | Application | ||||
| Out-Put | Max | Working voltage(V) | Working current (mA) | Working temprature(ºC) | Rate suction(N) | ||||||||
| HZPVH-01LH | Left Handle | 30 | 27 | 100 | 5~17 | 6.7~18.7 | 3 | __ | __ | -40~120 | __ | 2 | Small Excavator |
| HZPVH-01RH | Right Handle | Small Excavator | |||||||||||
HZPVH-01A | A Handle | Small Wheel Loader | |||||||||||
| HZPVH-01B | B Handle | Small Wheel Loader | |||||||||||
| HZPVH-01Z | Z Handle | 3 | Small Wheel Loader | ||||||||||
| HZPVH-01D | A&B Handle | DC24 | 500~520 | 280 | 2 | Small Wheel Loader | |||||||
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
