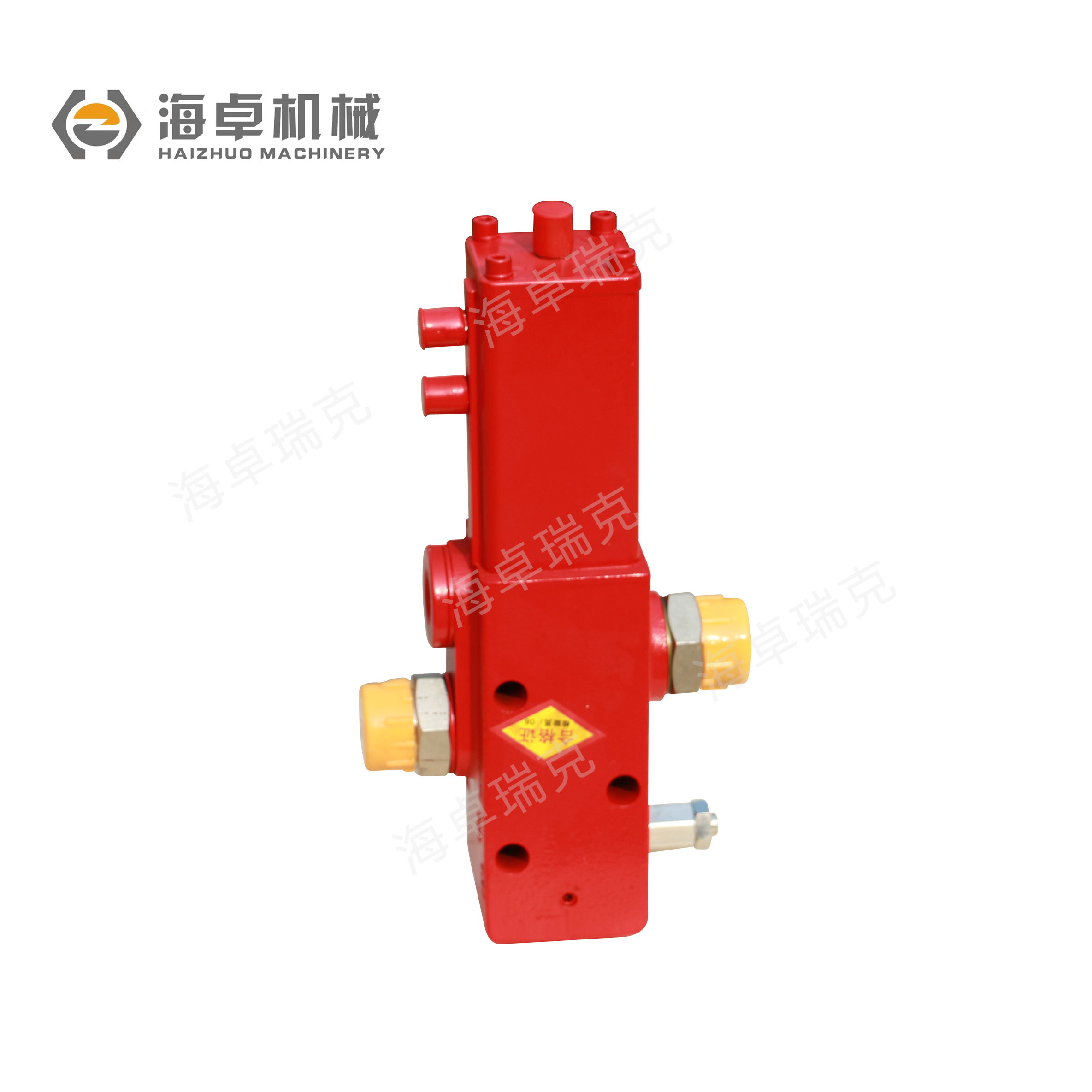

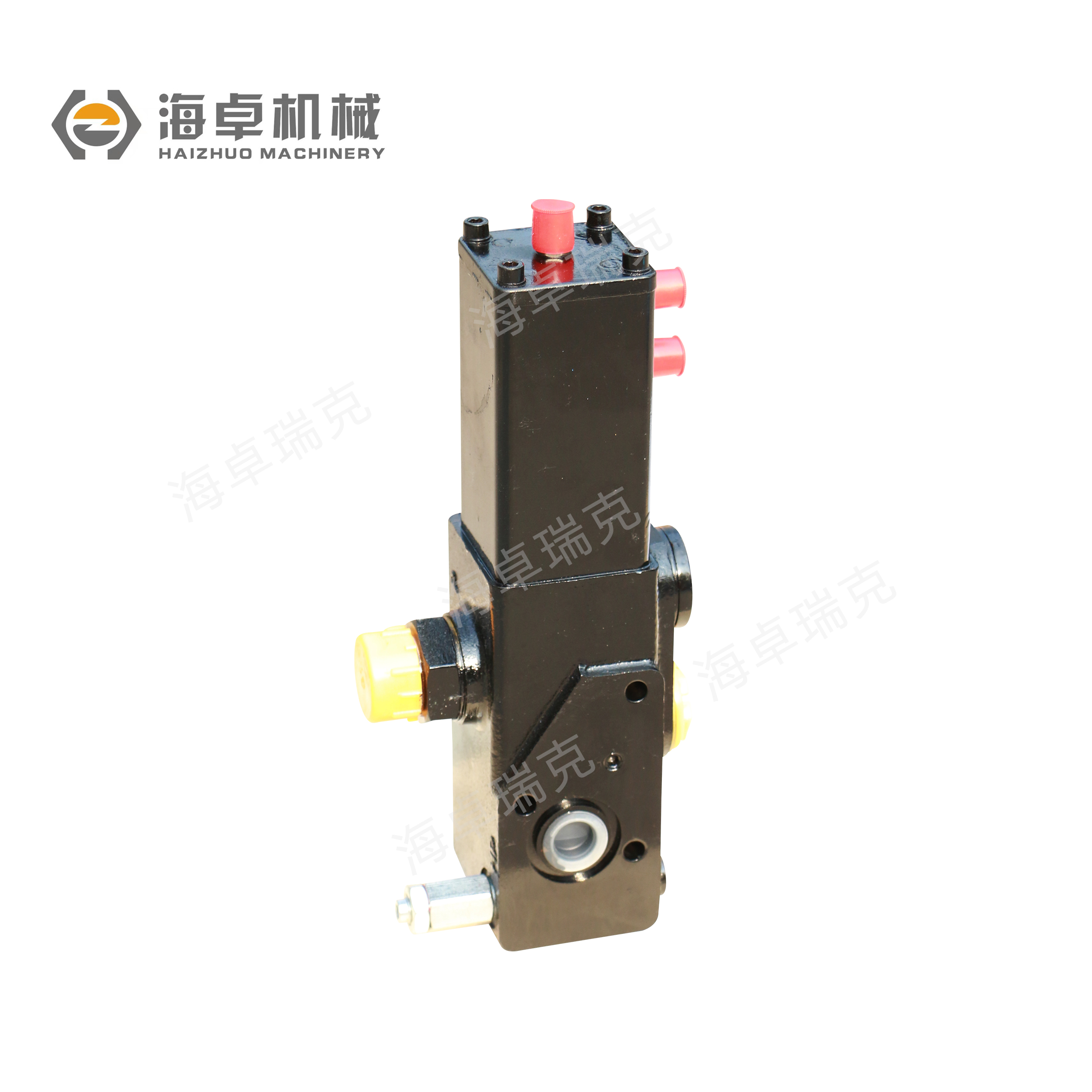

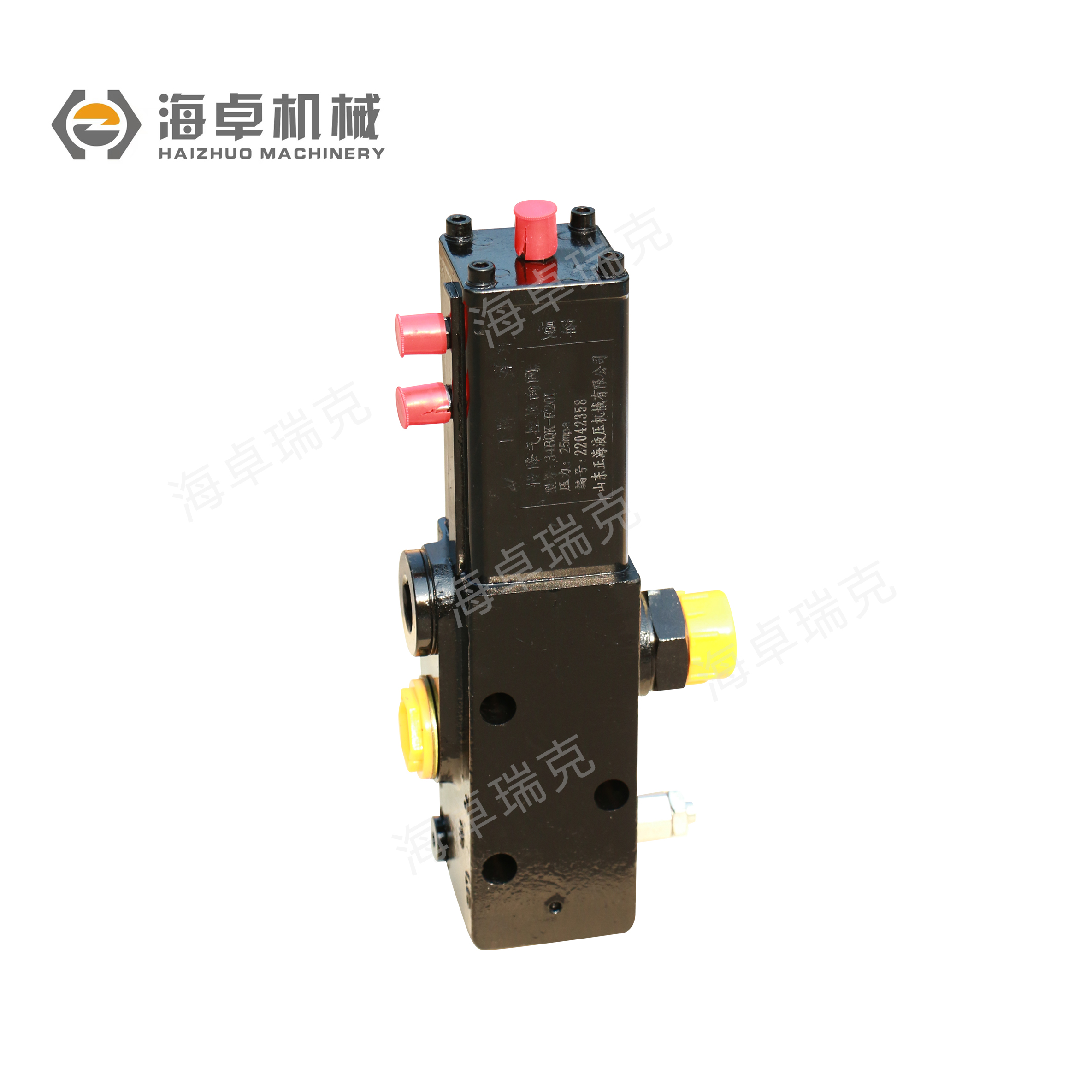

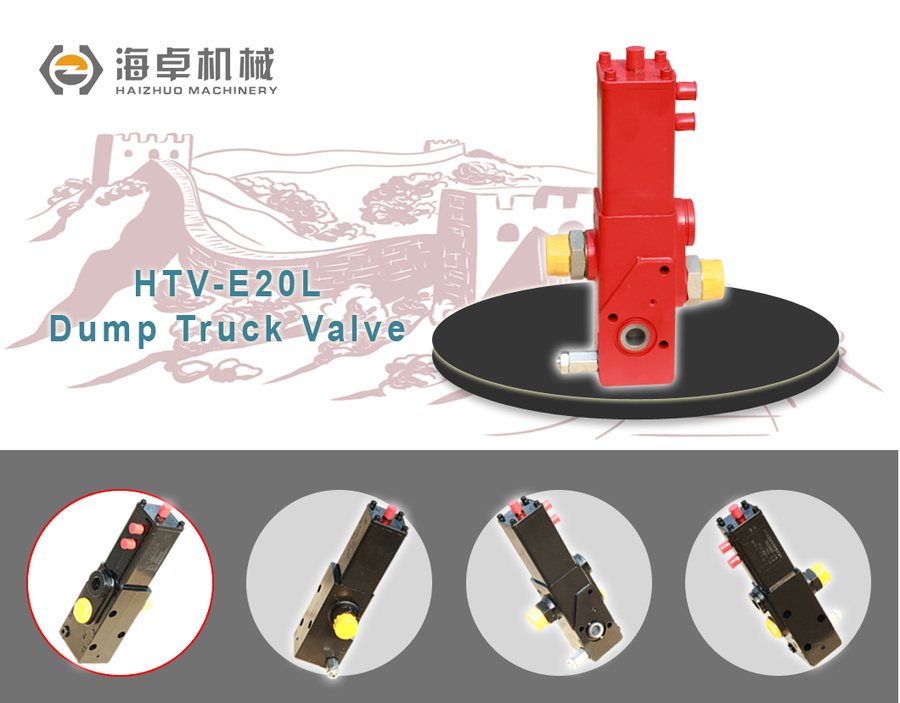

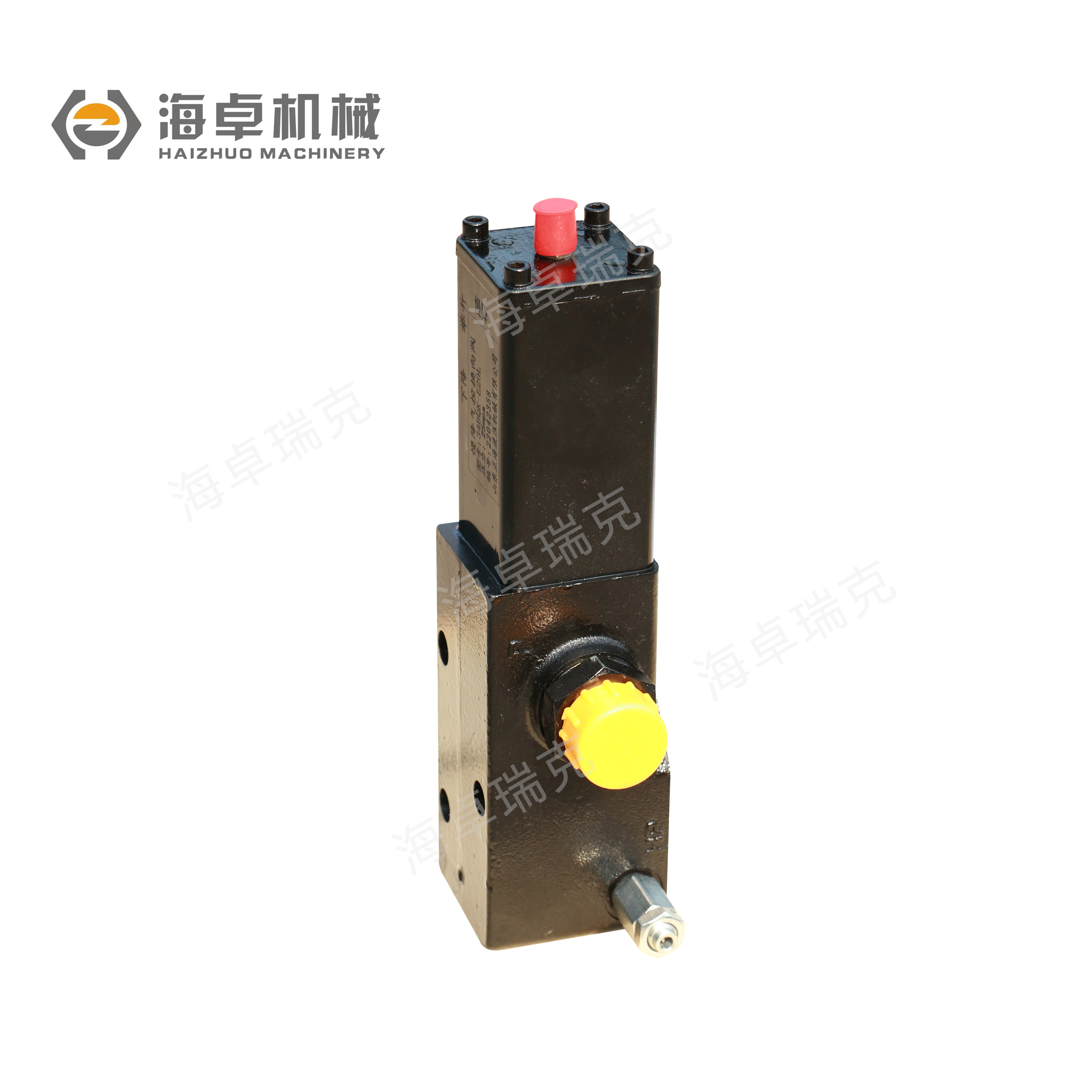

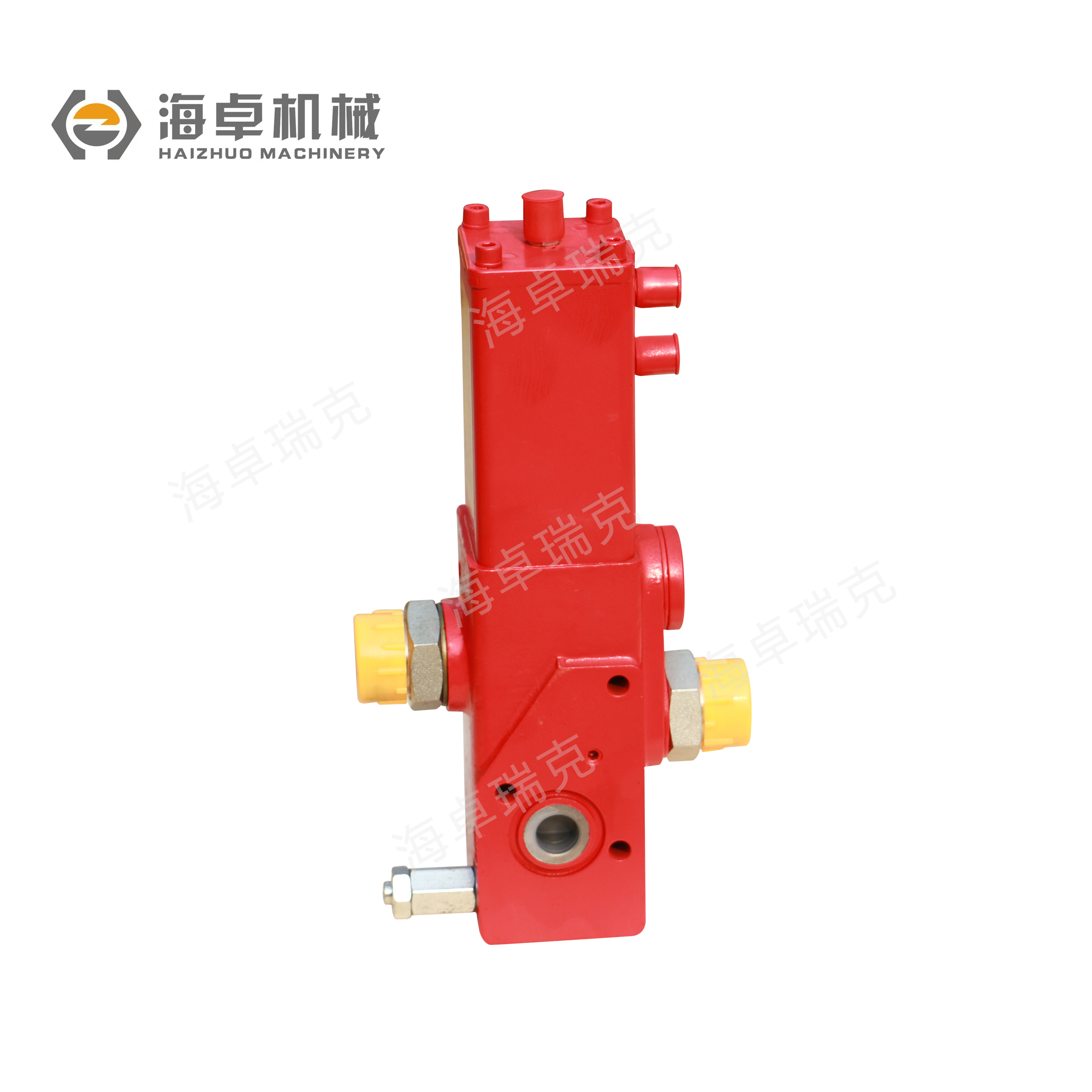

HTV-E20L Dump Truck Valve
FOB Price:US $42-50/Piece (Min. Order 1 Piece ) Sample Price: US$55Piece (Min. Order 1 Piece ) | |||
| Model No. | HTV-E20L | Material | Cast Iron |
| After-sales Service | Yes | Warranty | 12 Months |
| Pressure | 12~18MPa | HS Code | 8427109000 |
| Condition | New | Custom Scope | Oil Port, External Connection and Spraying Color |
| Applicable Fields | Tipper & Dump Truck | Rate Flow(L/Min) | 220 |
| Work Temperature | -20~+100ºC | Normianal Dia.(mm) | 25 |
| Operation Mode | Combined Pneumatic & Hydraulic Control | Control Air Pressuer Value(MPa) | 0.6~1.0 |
| Transport Package | Wooden Case & Carton & Foam Board | Slow Descent Port | Optional |
| Specification | 40cm*20cm*15cm | Port of shipment | QingDao |
| Production Capacity | 50000pieces/Year | Trademark | Haizhuo |
| Origin | Qingzhou Weifang China | ||
The special combination valve for dump truck is composed of HTV-E20L lifting valve, BKQF34-A proportional air control valve and XQF22-B limit valve. The proportional control air valve is used to manually operate the lifting and lowering speed of the dump truck body. When the body is lifted to a certain height, the lifting can be stopped through the limit valve control to ensure the safety of dumping.
The valve is compact in structure, small in volume, flexible in operation, and can be operated remotely by pneumatic control.

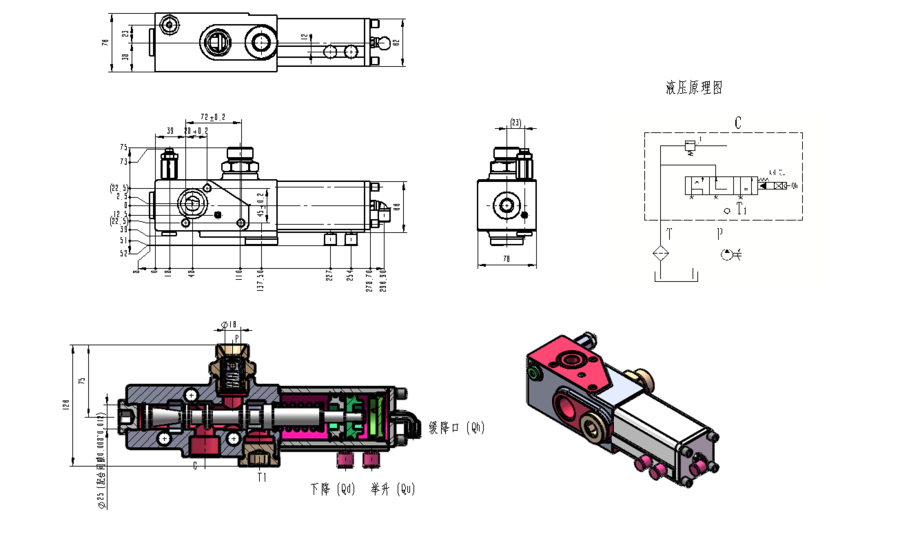

Parameters & Connection

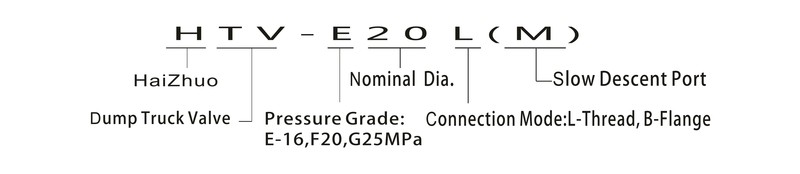

| Technical Parameters of HTV-E20L(M) Dump Truck Valve | ||||||
Model No. | Rated Pressure (MPa) | Rate Flow (L/min) | Norminal Dia. (mm) | Control Air Pressure(MPa) | Temperature Range (ºC) | Note |
| HTV-E20L | 25 | 220 | 25 | 0.6~1.0 | -20~100ºC | Without Slow Descent Port |
| HTV-E20LM | 25 | 220 | 25 | 0.6~1.0 | -20~100ºC | With Slow Descent Port |
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
FAQ
1. We are an experienced hydraulic parts manufacturer with over 10 years.
2. Our team: customers-focused,you'll get reply within 5-10 minutes.3. Haizhuo: Provide products with good cost performance.
Q:Can I get a sample?
Of course you can,but you may need to pay sample charge which will be returned after formal order signed.
Q:What about Haizhuo delivery term?
10-15 days after final payment received.
Q:What about the payment term?
30%~50%advance payment,70%~50% balance by T/T.
Q: How can I get your pricelist?
Send an enquiry to us,our sales will offer you a free quotation reply within 24 hours.
If you are interested in our products and descriptions, please contact our product specialist. Thank you very much!
