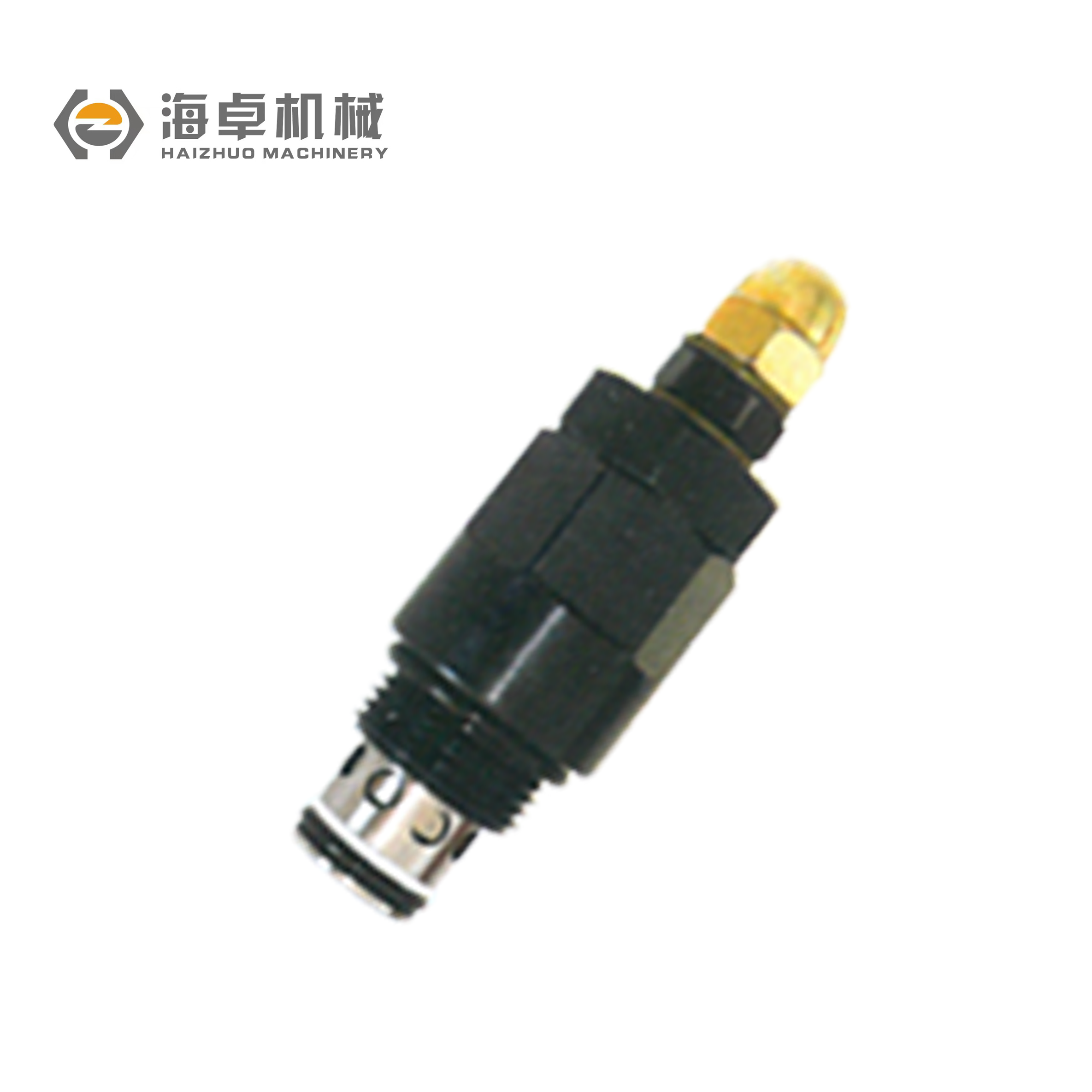

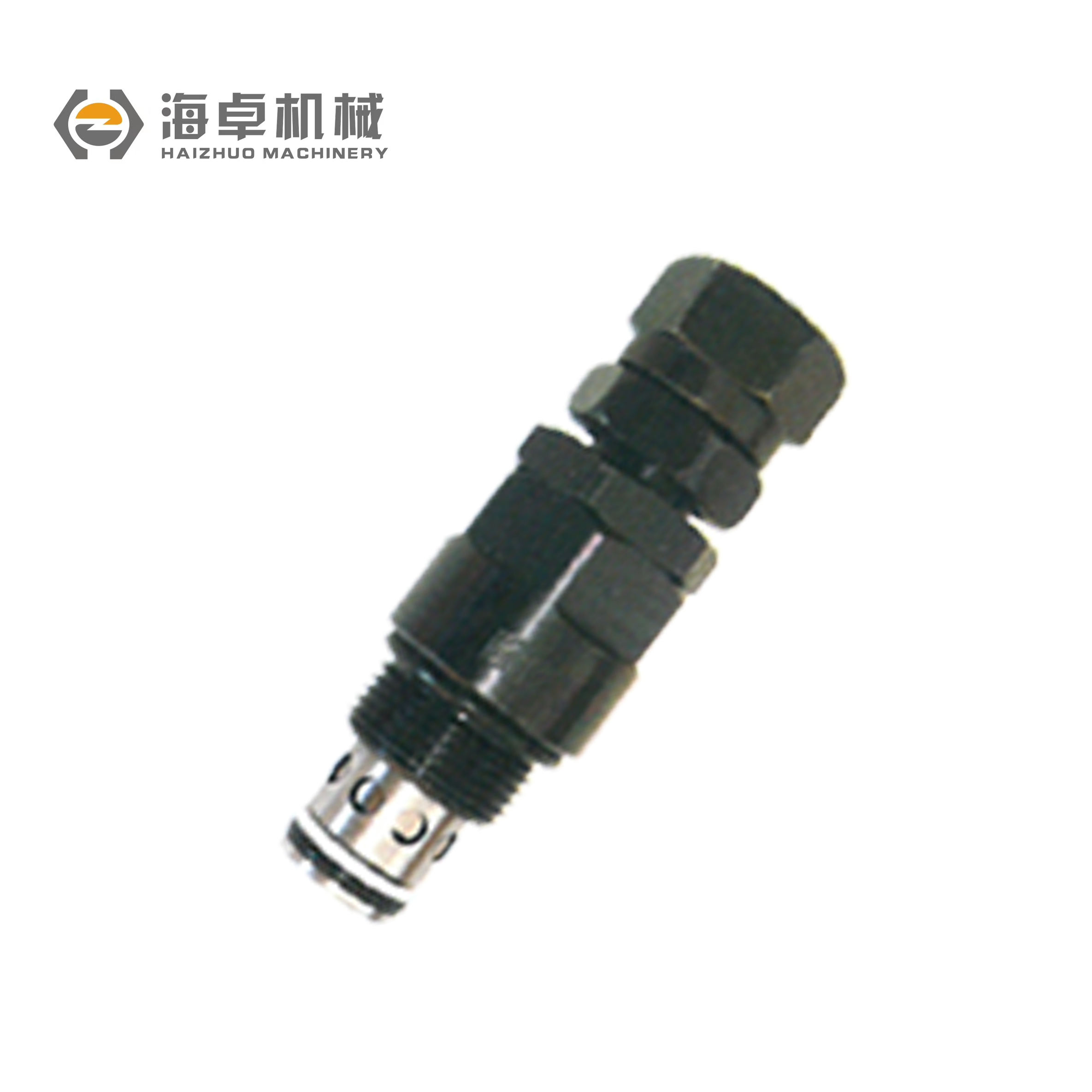

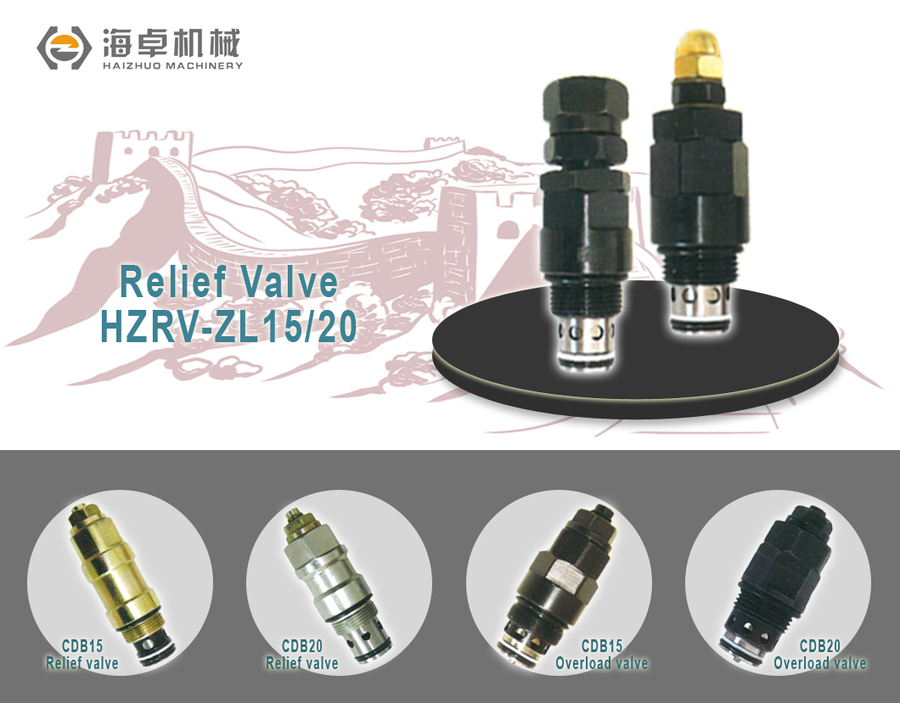

Zl15/20 Threaded Cartridge Relief Valve
| FOB Price:US $15-20 (Min. Order 5 Piece ) Sample Price:US $80/Piece (Min. Order 1 Piece ) | |||
| Model No. | HZRV-ZL15/20 | Application | Construction Machinery |
| After-sales Service | Yes | Warranty | 12 Months |
| Production Capacity | 100000 pieces/Year | Customization | Available |
| Condition | New | Type | Valve |
| Applicable Fields | Construction &Mining &Agriculture Machinery | Control System | Pilot Control |
| Specification | 25cm*8cm*8cm | HS Code | 8481802990 |
| Origin | Qingzhou Weifang China | Transport Package | Plastic Box& Carton & Foam Board |
Port of shipment | QingDao | Trademark | haizhuo |
The installation method of threaded cartridge valve is
to directly screw the thread into the valve block, which is generally composed of valve body, valve sleeve, valve core, seal and control parts. It has the advantages of small volume, compact structure, small internal leakage, easy installation and maintenance.
It is widely used in hydraulic systems of construction machinery such as forklift, loader, excavator, truck crane, agricultural machinery and other vehicles.
It can be divided into three categories: pressure valve,flow valve and directional valve according to their roles and functions. The diameters range from 3 to 32. The maximum pressure can reach 30MPa and the maximum flow is 300L / min.
Our product advantage 1:
The valve body is made of qt500 or 35CrMo and other high-quality alloy steel, and the surface is treated with blackening or nickel plating to ensure rust prevention and beautiful effect;
The valve core is made of Gr15 / 20CrMnTi and other materials. The surface is quenched or carburized and quenched by heat treatment. The matching parts are processed by fine boring, fine honing and internal grinding to ensure dimensional and behavioral tolerance.
Our product advantage 2:
Use coordinate measuring instrument, cylindricity instrument and pneumatic / electric measuring instrument to measure the dimension and row position tolerance of the hole shaft, so as to ensure the small clearance matching requirements of the valve core and sleeve.

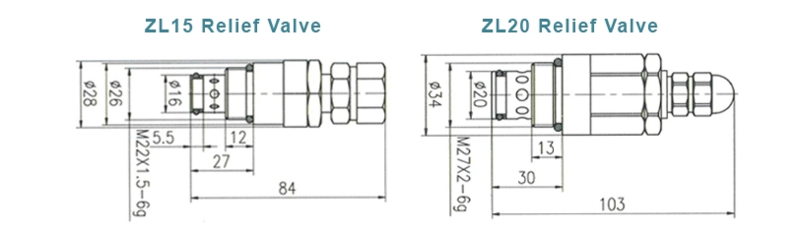

Parameters & Connection
| Technical Parameters of Cartradge Valve | ||||||
| Model No. | Norminal Flow (L/min) | Drift Diameter(mm) | Structural Style | Pressure Range (MPa) | Application | |
| Direction | Pilot | |||||
| HZRVP-ZL15/20 | 80/100 | 15/20 | -- | √ | 10~22 | ZL08~20 Wheel Loader/ Forklift/Tractor |
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
FAQ
1. We are an experienced hydraulic parts manufacturer with over 10 years.
2. Our team: customers-focused,you'll get reply within 5-10 minutes.3. Haizhuo: Provide products with good cost performance.
Q:Can I get a sample?
Of course you can,but you may need to pay sample charge which will be returned after formal order signed.
Q:What about Haizhuo delivery term?
10-15 days after final payment received.
Q:What about the payment term?
30%~50%advance payment,70%~50% balance by T/T.
Q: How can I get your pricelist?
Send an enquiry to us,our sales will offer you a free quotation reply within 24 hours.
If you are interested in our products and descriptions, please contact our product specialist. Thank you very much!
